Cubo Kick 15

More
2 years 8 months ago - 2 years 8 months ago #24961 by Trizzor
Replied by Trizzor on topic Cubo Kick 15
Hello, you think the 15NMB1000 will work in die Cubo Kick 15?

Fs 46 Hz
Re 5.3 Ω
Sd 855 sq.cm (133 sq.in)
Qms 8.3
Qes 0.24 Free air Impedance curve
Qts 0.24
Vas 124 L (4.4 cu.ft)
Mms 100 g (0.22 lb)
BL 25.2 Tm
Xmax (5) ±6.5 mm (±0.26 in)
Xvar (6) ±8 mm (±0.31 in)
Le (1 kHz) 0.89 m
Ref. Efficiency (half space) 4.7 %
Last edit: 2 years 8 months ago by Trizzor.

Please Log in or Create an account to join the conversation.

  • Cubo15
  • Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
2 years 8 months ago #24962 by Cubo15
Replied by Cubo15 on topic Cubo Kick 15

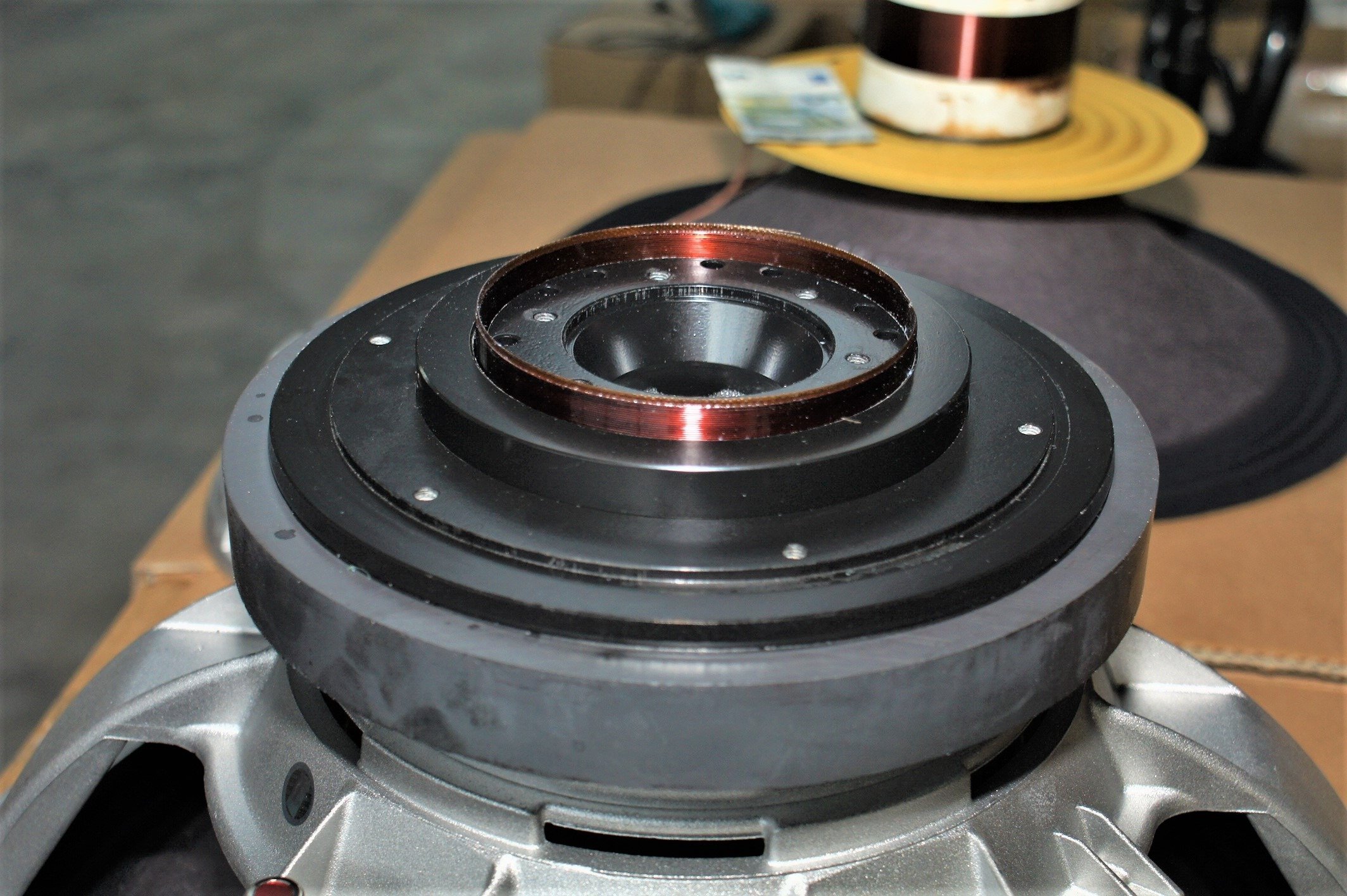

I think it will behave very similar to the original 15ND930 but it has a 4" voice coil so it will handle more power thermally, which doesn't hurt. In responds to your PM, that's quite a powerful system you're working on.

Best regards Cubo
The following user(s) said Thank You: Trizzor

Please Log in or Create an account to join the conversation.

More
1 year 9 months ago #25027 by Utki
Replied by Utki on topic Cubo Kick 15
Hi Cubo!

I would be glad to receive your advice.
My friends and I have a small sound system:
Kind of G subs + 2 reflex cabs with RCF L15 554K as kick + tops.
We want to change our kick bins to cubo kick to get more crisp bass and a "chest feeling".
The question is how it will affect cubo kick parameters with adjustment of it to 53.6 cm width (same as subs)?

Thank you!

Please Log in or Create an account to join the conversation.

  • Cubo15
  • Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
More
1 year 8 months ago #25028 by Cubo15
Replied by Cubo15 on topic Cubo Kick 15
Hi Utki,

Changing the width to 53.6 cm lowers the output between 80 - 90 Hz somewhat, in exchange for a slightly higher crossover for the tops. Since chest feeling starts around 120 Hz anyway, it shouldn't matter much. The RCF L15 554K is a great kick driver regardless.

Best Cubo



Please Log in or Create an account to join the conversation.
